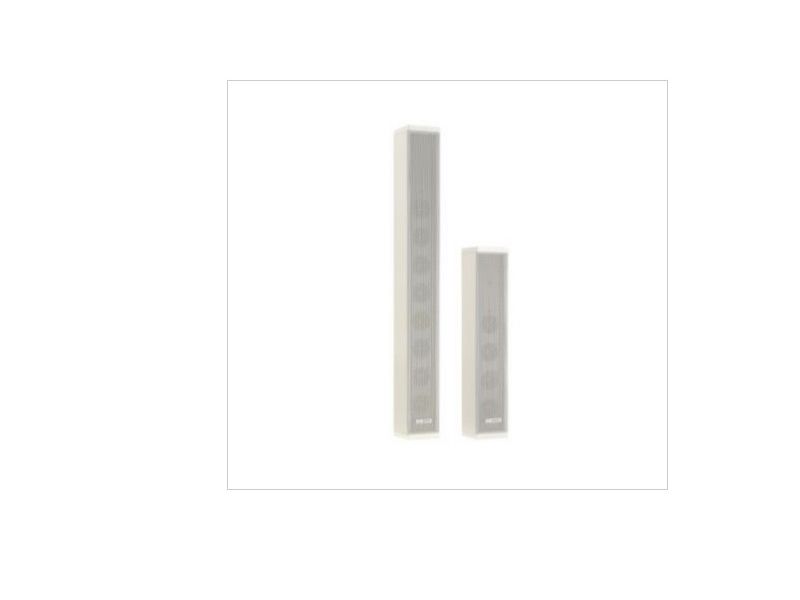

Bosch Column loudspeaker, 20W
The LA1-UM20E-1 and LA1-UM40E-1 metal column loudspeakers deliver professional performance from a robust, yet aesthetically designed aluminum enclosure in a white finish. It is an ideal loudspeaker column where sound beaming is required, for both indoor and outdoor use in passenger terminals, places of worship, conference venues, theme parks, swimming pools, factories, exhibition areas. A swivel wall mounting bracket is supplied as standard, allowing accurate positionin.
- Good speech intelligibility and background music reproduction
- For applications where directivity is important
- Slim-line weatherproof design
- Swivel wall-mounting bracket supplied as standard
- Robust aluminum construction
- Switchable between 70/100 V line and 8 Ohms
- Provision for inside mounting of the optional line/loudspeaker supervision board
- EN 54‑24 certified
- BS 5839‑8 and EN 60849 compliant
- Good speech intelligibility and background music reproduction
- For applications where directivity is important
- Slim-line weatherproof design
- Swivel wall-mounting bracket supplied as standard
- Robust aluminum construction
- Switchable between 70/100 V line and 8 Ohms
- Provision for inside mounting of the optional line/loudspeaker supervision board
- EN 54‑24 certified
- BS 5839‑8 and EN 60849 compliant
Technical Specification
Color White; Customized colors
Coverage angle HxV (-6 dB, 1 kHz) (°) 210 x 80 °
Coverage angle HxV (-6 dB, 4 kHz) (°) 94 x 22 °
Dimensions (H x W x D) (mm) 477 x 86.5 x 97 mm
Frequency range (-10 dB) (Hz) 180 – 16000 Hz
IP rating IP65
Material Aluminum; Plastic (ABS)
Operating relative humidity, non-condensing (%) 0 – 95 %
Operating temperature (°C) -25 – 55 °C
Rated input voltage (V) 100 V
Rated power (W) 20 W
Sensitivity (1 W, 1 m, 1 kHz octave) (dB) 89 dB
Sensitivity (1 W, 4 m, 100 Hz - 10 kHz) (dB) 78 dB
Storage temperature (°C) -40 – 70 °C
Weight (kg) 2.90 kg
Color White; Customized colors
Coverage angle HxV (-6 dB, 1 kHz) (°) 210 x 80 °
Coverage angle HxV (-6 dB, 4 kHz) (°) 94 x 22 °
Dimensions (H x W x D) (mm) 477 x 86.5 x 97 mm
Frequency range (-10 dB) (Hz) 180 – 16000 Hz
IP rating IP65
Material Aluminum; Plastic (ABS)
Operating relative humidity, non-condensing (%) 0 – 95 %
Operating temperature (°C) -25 – 55 °C
Rated input voltage (V) 100 V
Rated power (W) 20 W
Sensitivity (1 W, 1 m, 1 kHz octave) (dB) 89 dB
Sensitivity (1 W, 4 m, 100 Hz - 10 kHz) (dB) 78 dB
Storage temperature (°C) -40 – 70 °C
Weight (kg) 2.90 kg
-
