Bosch Ceiling loudspeaker, 6W, ABS, 2''

Brend: Bosch
Kod proizvoda: Bosch Ceiling loudspeaker, 6W, ABS, 2''
Dostupnost: Na lageru

Pozvati za cenu

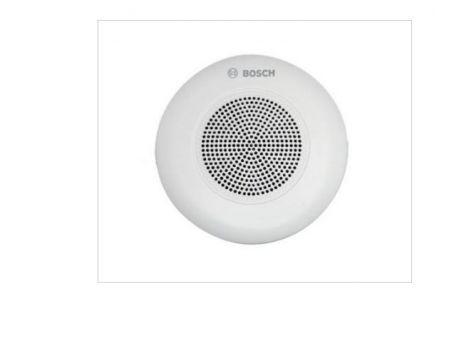

The LC5‑WC06E4 is an extreme compact ceiling loudspeaker, suitable for speech and background music reproduction. The design of the front grille perfectly matches with current available recessed luminaires, integrating light and sound.
The optional back‑box LC5‑CBB fully protects the rear of the loudspeaker from dust and dripping water from above, making the combination IP 44 protected.
The loudspeaker frame, grille and back‑box are manufactured from self‑extinguishing ABS according to UL 94 V 0.
This ceiling loudspeaker is suitable for use in low ceiling applications with low noise level. The small driver used in the unit stands for delivering good sound quality from a small sized unit and provides a wide opening angle for the important frequency octaves. Fewer loudspeakers are needed to cover a given area, and the noticeable “fading” that occur as a
listener walks from one loudspeaker to another area is eliminated.
The loudspeaker (with assembled back‑box) is suitable for use in humidity-, chlorine- and salty environments.

- Suitable for speech and music reproduction
- Extreme compact size
- Suitable for use in humidity-, chlorine- and salty environments
- Selectable 70 V ,100 V and 8 Ohm input
- EN 54‑24 certified
Technical specification

Color White; Customized colors
Coverage angle HxV (-6 dB, 1 kHz) (°) 180 x 180 °
Coverage angle HxV (-6 dB, 4 kHz) (°) 180 x 180 °
Dimensions (Ø x H) (mm) 88 x 89.5 mm
Frequency range (-10 dB) (Hz) 85 – 20000 Hz
Material Plastic (ABS)
Operating relative humidity, non-condensing (%) 0 – 95 %
Operating temperature (°C) -25 – 55 °C
Rated input voltage (V) 70 V; 100 V
Rated power (W) 6 W
Sensitivity (1 W, 1 m, 1 kHz octave) (dB) 82 dB
Sensitivity (1 W, 4 m, 100 Hz - 10 kHz) (dB) 71 dB
Sound pressure level (rated power, 1 m, 1 kHz octave) (dB) 90 dB
Sound pressure level (rated power, 4 m, 100 Hz - 10 kHz) (dB) 76 dB
Storage temperature (°C) -40 – 70 °C
  • LC5_WC06E4_Data_sheet_enUS_9007213083477771

    LC5_WC06E4_Data_sheet_enUS_9007213083477771

  • LC5_WC06E4_and_LC5_C_Installation_Manual_enUS_27100451723

    LC5_WC06E4_and_LC5_C_Installation_Manual_enUS_27100451723

  • EU_DOP_Certificate_EU_DoP_all_9007218396901259

    EU_DOP_Certificate_EU_DoP_all_9007218396901259

  • PL_CNBOP_Certificate_PL_CNBOP_plPL_9007216791290507

    PL_CNBOP_Certificate_PL_CNBOP_plPL_9007216791290507

  • EU_CE_Certificate_EU_CE_all_27021654193651723

    EU_CE_Certificate_EU_CE_all_27021654193651723
