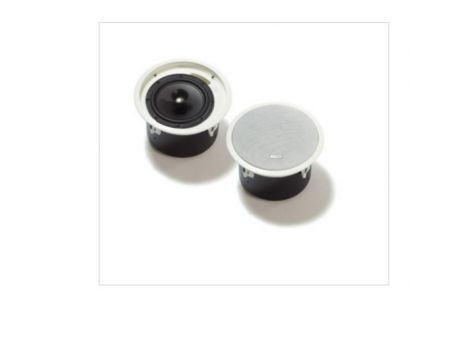

Bosch Ceiling loudspeaker, 30W, 8'', low
Pozvati za cenu
Premium Sound
The LC2‑PC30G6‑8L is a 8‑inch two‑way Premium‑sound Ceiling Loudspeaker which provides, wide dispersion, high efficiency, high maximum output, ease‑of‑installation, low profile install space and wide‑range reproduction of music and voice. It consists of a baffle assembly, grille, back‑can enclosure 8‑inch coax two‑way loudspeaker and internal output‑power matching transformer. The loudspeaker features a waveguide coupled titanium
coated dome tweeter. The rear enclosure provides an optimum internal volume for extended low frequency performance.
The loudspeaker utilizes a second order crossover network at 2.5 kHz, with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels. The loudspeaker can be installed optionally with the LC2‑PC60G6‑10 ceiling subwoofer to enhance the low frequency reproduction down to 45 Hz.
- 8‑inch coaxial two‑way
- Waveguide coupled Ti tweeter
- Full bandwidth overload protection
- Front baffle wattage tap adjustment
- BS 5839‑8 and EN 60849 compliant
The LC2‑PC30G6‑8L is a 8‑inch two‑way Premium‑sound Ceiling Loudspeaker which provides, wide dispersion, high efficiency, high maximum output, ease‑of‑installation, low profile install space and wide‑range reproduction of music and voice. It consists of a baffle assembly, grille, back‑can enclosure 8‑inch coax two‑way loudspeaker and internal output‑power matching transformer. The loudspeaker features a waveguide coupled titanium
coated dome tweeter. The rear enclosure provides an optimum internal volume for extended low frequency performance.
The loudspeaker utilizes a second order crossover network at 2.5 kHz, with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels. The loudspeaker can be installed optionally with the LC2‑PC60G6‑10 ceiling subwoofer to enhance the low frequency reproduction down to 45 Hz.
- 8‑inch coaxial two‑way
- Waveguide coupled Ti tweeter
- Full bandwidth overload protection
- Front baffle wattage tap adjustment
- BS 5839‑8 and EN 60849 compliant
Technical specification
Color White
Frequency range (-10 dB) (Hz) 50 – 20000 Hz
Material Steel; Plastic
Operating relative humidity, non-condensing (%) 0 – 95 %
Operating temperature (°C) -25 – 55 °C
Rated input voltage (V) 70 V; 100 V
Sensitivity (1 W, 1 m, 1 kHz octave) (dB) 91 dB
Storage temperature (°C) -40 – 70 °C
Weight (kg) 5 kg
Color White
Frequency range (-10 dB) (Hz) 50 – 20000 Hz
Material Steel; Plastic
Operating relative humidity, non-condensing (%) 0 – 95 %
Operating temperature (°C) -25 – 55 °C
Rated input voltage (V) 70 V; 100 V
Sensitivity (1 W, 1 m, 1 kHz octave) (dB) 91 dB
Storage temperature (°C) -40 – 70 °C
Weight (kg) 5 kg
-
LC2_PC30G6_8L_Data_sheet_enUS_1926725259 (1)
-
Commercial_Brochure_deDE_1926367243 (2)
-
Installation_Manual_Installation_Manual_deDE_1926375947 (2)
-
EU_CE_Certificate_EU_CE_enUS_63050414251151883 (1)
-
LC2_PC30G6_8L_Certificate_EU_CE_all_87297697675
