Carrier UTC Outdoor Hardwired Sirens AS586XXL
Brend: Carrier UTC
Kod proizvoda: Carrier UTC Outdoor Hardwired Sirens AS586XXL
Dostupnost: Na lageru
Kod proizvoda: Carrier UTC Outdoor Hardwired Sirens AS586XXL
Dostupnost: Na lageru
Cena: 6,177.60 RSD
Bez PDV-a: 5,148.00 RSD
Bez PDV-a: 5,148.00 RSD
AS586XXL

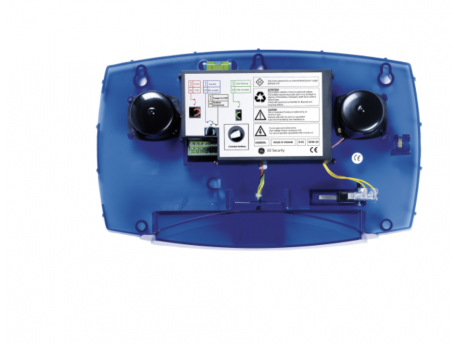

Outdoor siren - The Level - blue base / no cover / no battery
- Spirit level on top of the back plate to correctly align the AS580
- Low profile polycarbonate box with integrated strobe lens
- Double piezo sounder with 112 dB @ 1m sound output
- Highly weather resistant, IP55
- Easy wiring
| General | |
|---|---|
| Accessory group | Siren |
| Type | Outdoor siren |
| Electrical | |
|---|---|
| Operating voltage | 10 to 14.5 V |
| Current consumption | 350 mA |
| Physical | |
|---|---|
| Physical dimensions | 371 x 225 x 56 mm |
| Environmental | |
|---|---|
| Operating temperature | -25 to 55 °C |
| Standards & regulation | |
|---|---|
| Compliancy | CE |
| Material | |
|---|---|
| Polycarbonate | |
| PCB protection | |
|---|---|
| Fully potted | |
| Power supply | |
|---|---|
| 10.0V - 14.5V | |
| Tamper & pry-off | |
|---|---|
| Yes | |
| Typical standby current | |
|---|---|
| LEDs OFF: | 38 mA |
| LEDs ON alt: | 57 mA |
| LEDs ON cont: | 74 mA |
| Typical operating current | |
|---|---|
| Sounder: | 350 mA |
| Flash light: | 110 mA |
| Sounder + Flash: | 420 mA |
| Sounder | |
|---|---|
| Double piezo | |
| Sound output | |
|---|---|
| 112 dBA | |
| Sounder cut-off timer | |
|---|---|
| 5' or 15' | |
| Frequency | |
|---|---|
| 1.8 to 3 kHz | |
| Operating temperature | |
|---|---|
| -25 to +55°C | |
| Dimensions | |
|---|---|
| 371 x 225 x 56 mm | |
| Battery | |
|---|---|
| BS120N-XXL- Lead acid 12V - 0.8Ah (to be ordered separately) | |
-
As586xxl-1-en-admin
