2N 2N IP Style 9157101

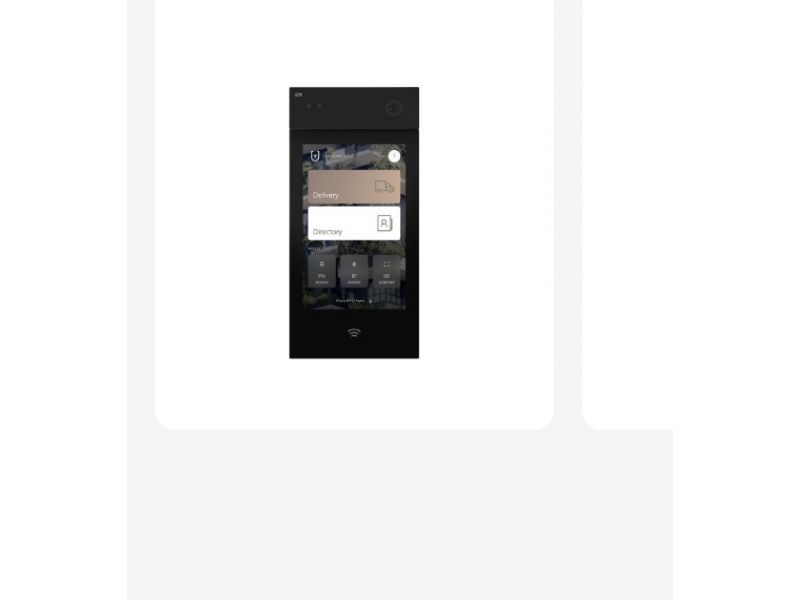

2N IP Style
Order namber: 9157101
Featuring a sleek 10’’ touch display and supercharged with the AXIS ARTPEC-7 processor, a full-HD camera and WaveKey technology - the 2N IP Style is truly ground-breaking.
Order namber: 9157101
Featuring a sleek 10’’ touch display and supercharged with the AXIS ARTPEC-7 processor, a full-HD camera and WaveKey technology - the 2N IP Style is truly ground-breaking.
Technical specifications
Audio
Microphone: 2 built-in microphones
Speaker: 2x4W/4 Ω
Sound Pressure At 1KHz At 1M Distance (SPL Max): 85dB
Volume Control: adjustable with automatic adaptive mode
Full Duplex: Yes (AEC)
Codecs: G.711, G.729, G.722, L16/16kHz
Camera
Resolution – JPEG: max 2560x1920 (4:3); max QHD (16:9)
Resolution – Video Call: max 2560x1920 (4:3); max QHD (16:9)
Frame Rate: max 30fps
Sensor Sensitivity: 14000e¯/lux-sec
Viewing Angle: 138° (H), 114° (V)
Infrared Light: yes
Forensic WDR: yes
Codecs: H.264, H.265, MJPEG, Axis Zipstream
Touchscreen
Size: 10.1″
Resolution: 1280x800 TFT IPS
Viewing Angle: 170°
Numeric Keypad: touch (on-screen)
Directory: 2 modes office/residential (10000 users)
Bluetooth Reader
Bluetooth: Bluetooth 5.0 LE compliant
Security: RSA-1024 and AES-128encryption
RX Sensitivity: +19dBm
Range: short - typically up to 3m, long - typically up to 10m distances should serve only as an approximate guide and may vary depending on the phone model and installation environment
Modes: touch, tap in app, card, motion
Mobile App. Support: 2N Mobile Key, iOS 12 and higher, Android 6 and higher
WaveKey Support: yes
RFID Card Reader
Supported Frequencies: 125kHz, 13.56MHz
Supported Card Types: card type compatibility depends on Order No.
125 KHz: EM4xxx, HID Prox – versions with 125 kHz support and S in Order No. Only
13.56 MHz: ISO14443A, PicoPass (HID iClass), FeliCa, ST SR(IX), NFC (2N Mobile Key), Secured MIFARE DESFire EV2/EV3 cards using 2N PICard technology
Secured 13.56 MHz: ISO14443A (MIFARE® DESFire®), PicoPass (HID iClass), FeliCa, ST SR(IX), NFC (2N Mobile Key), HID SE Seos, iClass, MIFARE SE, reads PACs ID (HID iClass cards with SIO object), Secured MIFARE DESFire EV2/EV3 cards using 2N PICard technology
Power Supply
DC Power Supply: 12 ±15 %V, 4A
PoE: PoE+ IEEE 802.3at (Class 4–25.5 W)
Interfaces
LAN: 10/100BASE-TX with Auto-MDIX, RJ-45
Switch Output: NC/NO contacts, 30V, 1A, DC, AC
Active Switch Output: 12V, max 600mA
Passive / Active Input: -30 V to +30 V, 3
Tamper Switch: mechanical, part of the intercom
Supported Protocols: SIP2.0, SIPS, DHCP opt. 66, SMTP, SNMP, TR069, 802.1x, RTSP, RTP, SRTP, TFTP, HTTP, HTTPS, Syslog, ONVIF
Extension Modules (Optional)
I/O Module: external 43 (W) x 31.5 (H) x 1.5 (D) mm
Wiegand Module: external 43 (W) x 31.5 (H) x 1.5 (D) mm
Mechanical Properties
Cover: hardened white glass
Operating Temperature: -30 to 60°C
Storage Temperature: -30 to 70°C
Operating Relative Humidity: (non-condensing) 10 - 95%
Weight: 1950g
Officially Certified Outdoor Coverage Level: IP65, IK08
