2N 2N IP Force - 4 Buttons, HD Camera 01343-001

Brend: 2N
Kod proizvoda: 2N 2N IP Force - 4 Buttons, HD Camera 01343-001
Dostupnost: Na lageru

Pozvati za cenu

Order number: 01343-001

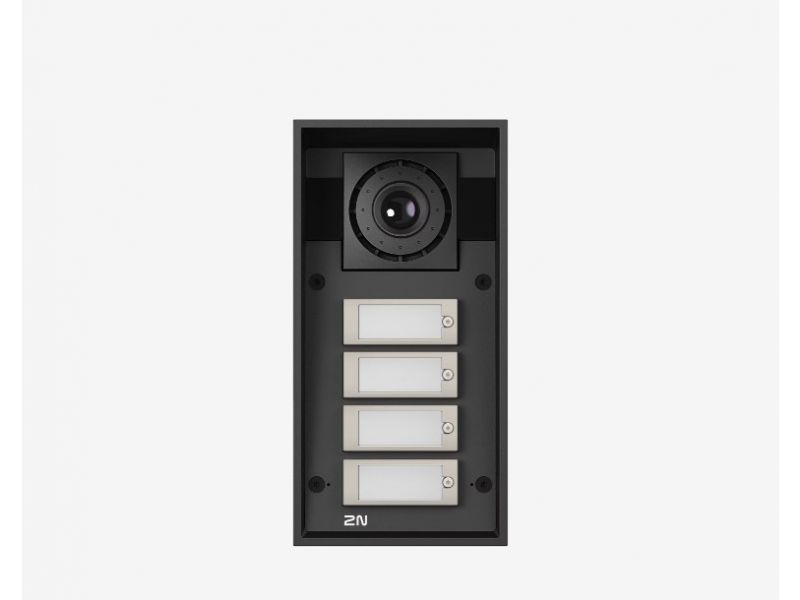

2N® IP Force is an extremely durable IP intercom that can withstand even the most demanding conditions. It
provides for visitor communication monitoring and access control. Take advantage of its superior features
for maximum site security.

• Built for extreme conditions
• Professional night vision
• Clear sound in noisy environments
• Durable access control solution
• Wide-angle HD camera
• Easy integration into CCTV and VMS

TECHNICAL PARAMETERS
Signalling protocol

SIP (UDP, TCP, TLS)

Button
Button design              Transparent, white backlit buttons with
                                    easily replaceable label
Count of buttons         1, 2 or 4
Numerical keypad       Optional

Audio
Microphone                 2 integrated microphones
Amplifier                     10 W (class D)
Speaker                     10 W
Volume control           Adjustable with automatic adaptive mode
Full duplex                 Yes (AEC)

Audio stream
Protocols                    RTP/RTSP
Codecs                       G.711, G.722, G.729, L 16/16kHz

Camera HD
Sensor                        1/3‘‘ colour CMOS
JPEG resolution         1280 (H) x 960 (V)
Video resolution          640 (H) × 480 (V)
Frame rate                  Up to 30 snapshots/s
Sensor sensitivity        5.6 V/lux-sec (550 nm) / 1.9 V/lux-sec
                                    (550 nm)
View angle                  135° (H), 109° (V)
Infrared light                Yes

Video stream
Protocols                      RTP/RTSP/HTTP
Codecs                         H.263, H.263+, H.264, MPEG-4, M-JPEG
IP camera function       Yes, ONVIF v2.4 profile S compatible

Interface
Power supply               12 V / 2A DC or PoE
PoE                              PoE 802.3af (Class 0 – 12,95 W)
LAN                             10/100BASE-TX with Auto-MDIX, RJ-45
Recommended cabling Cat-5e or higher
Passive switch              NO/NC contacts, max. 30 V/1A AC/DC
Active switch output     9 up to 13 V DC depending on power
                                     supply, max. 700 mA
RFID card reader
Supported frequencies 125kHz and 13.56MHz
125 kHz                        EM4100, EM4102, HID Proximity
13.56 MHz                    ISO14443A, ISO14443B, ISO15693, NFC
                                     support
                                     reads UID (CSN)
                                     reads PACs ID (iCLASS SIO-enabled
                                     cards)
                                    - only secured cards

Mechanical properties
Mechanical properties
Cover                            Robust aluminium casting
Operating temperature −40°F to 131 °F
Storage temperature    −40 °F to 158 °F
Operating relative
humidity                        10 % – 95 % (non-condensing)
Dimensions                   8.543 x 4.291 x 3.268 inch
                                      9.528 x 5.354 x 3.268 inch incl. frame
Weight                           Netto max. 4.409 lb / brutto max. 5.511 lb
Covering level                IP69K and IK10
