ZKTECO SF400
• 2.8-inch touch screen, color display with graphical UI for easy operation
• Up to 24 user-defined schedules that can be activated on a daily bell alert (optional)
• Prompt audio acceptance or rejection signals for valid or invalid fingers
• Compact and lightweight, small size for 86mm (L) x 86mm (H) socket installation
• TCP/IP or RS485 communication for various networking environments
• Supports USB flash drive for offline data management
• Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch
• Up to 15 multi-verification methods to enhance security level
• Standard access control features such as Time zone, Holiday, A&C Group, Unlock combination etc.
• Duress Alarm offers effective protection against duress by threats
• Tamper proof switch and multiple alarm outputs
• Multi-languages display available on request
- • 2.8-inch touch screen, color display with graphical UI for easy operation
• Prompt audio acceptance or rejection signals for valid or invalid fingers

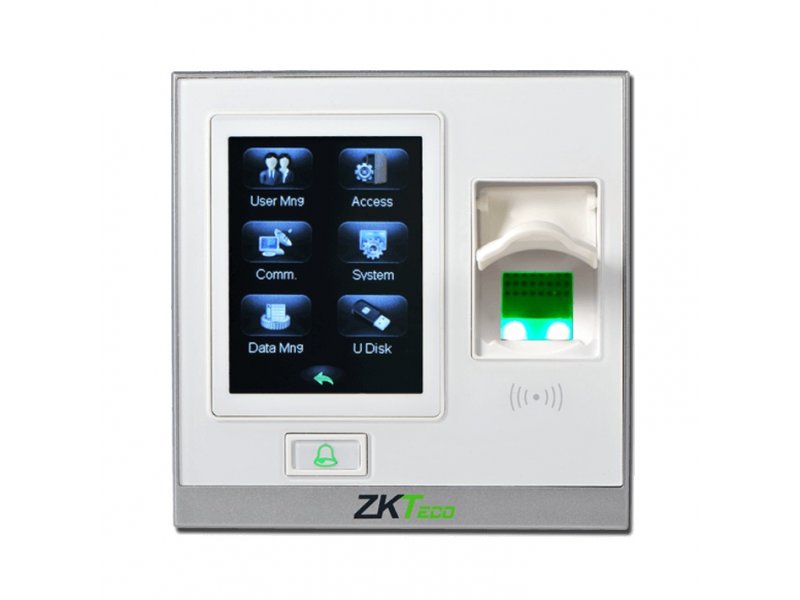

SF400 is an IP based fingerprint terminal with both Network and Standalone operation modes. It is connectible with ZKAccess 3.5 software for access control and time attendance management.
Technical Specifications | |
| Model | SF400 |
| LCD | 2.8 inch resistive touch screen |
| Fingerprint Sensor | ZK Optical Sensor (500DPI) |
| Algorithm Version | ZKFinger VX10.0 |
| Communication | TCP/IP, USB Host |
| Fingerprint Capacity | 1,500 |
| Card Capacity (Optional) | 5,000 (EM/Mifare) |
| Records Capacity | 80,000 |
| Access Control Interface | Electric lock, Door sensor, Alarm, Exit button, Door Bell |
| Wiegand Signal | Wiegand input & output |
| Aux. Input | 1ea for linkage function |
| Power Supply | DC 12V/3A |
| Operating Temperature | 0 ~ 45°C (32°~113°F) |
| Operating Humidity | 20 ~ 80% |
| Dimension(L x W x H) | 105 x 105 x 32mm |
