ZKTECO KR500H
• The ideal card access solution for any metal doors with thin frames
• Can be connected to most any access control panel
KR500H is a series of outdoor IP67-rated tamper-resistant multi-technology proximity card readers capable of reading both HID and ZKAccess 125 kHz 26-bit proximity cards.
Due to its conveniently small mullion size, KR500H is the ideal card access solution for any metal doors with thin frames, parking gates, fences, turnstiles or any security device having a narrow mounting surface. KR502H and KR503H are designed for single-gang mounting.
KR500H Series has a built-in Wiegand-Out port which can be connected to most any access control panel (including ZKAccess C3 and InBio door controllers).
• Designed for single-gang mounting
• The ideal card access solution for any metal doors with thin frames
• Can be connected to most any access control panel
| Technical Specifications | |
| Technology | Proximity |
| Supported card types | HID 125 kHz (also ZKAccess) |
| KR500H Mounting | Mullions, including metal doors and window frames |
| KR502H and KR503H Mounting | Metal or plastic US single-gang wall box, as well as at surfaces |
| Indoor & Outdoor Installation | Electronics sealed in weather |

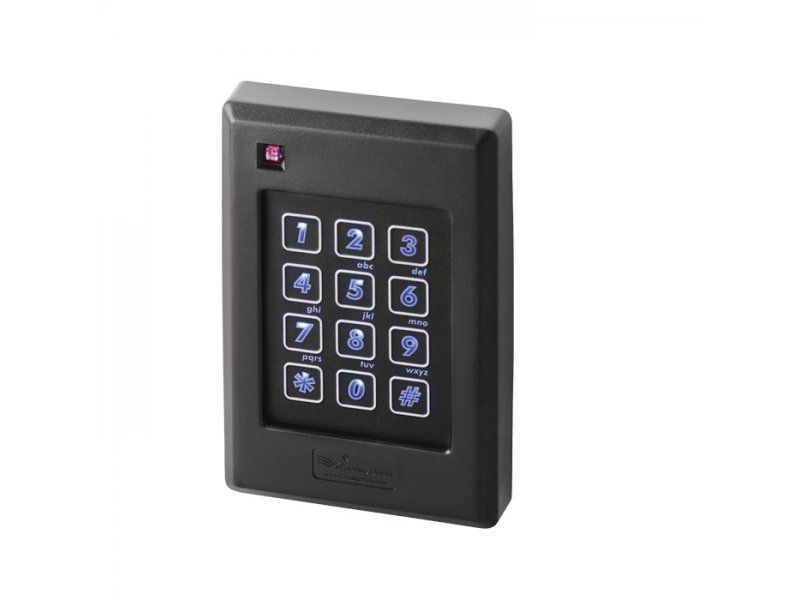

| Keypad | Model KR502H only |
| LED indicator | red, green, amber and "o " (represent 4 states) |
| Audio indicator | Beep |
| Wiegand Inferface | Wiegand-Out port |
| Power Supply | 5 to 16V DC |
| IP-rating | 67 |
| Operating Temperature | -35° F to 149° F / -40° C to + 65° C |
| Operating Humidity | 20% - 80% |
| KR500H Dimensions (H×W×D) | 3.2 x 1.7 x .7 inches (81 x 43 x 18 mm) |
| KR502H Dimensions (H×W×D) | 3.9 x 3.9 x 1 inches (117 x 76 x 19 mm) |
| KR503H Dimensions (H×W×D) | 4.6 x 3 x .6 inches (117 x 76 x 10 mm) |
| Certifications | FCC, ICC, CE, C-Tick, ETL Listed |
| KR500H and KR503H Current draw | 35 mA typical, 75 mA peak @ 12V DC |
| KR502H Current draw | 70 mA typical, 110 mA peak @ 12 VDC |
| Read range | KR500H up to 5 inches (126 mm) / KR502/KR503 up to 7 inches (178 mm) |
| Cabling | 24 AWG minimum, multi-conductor stranded |
