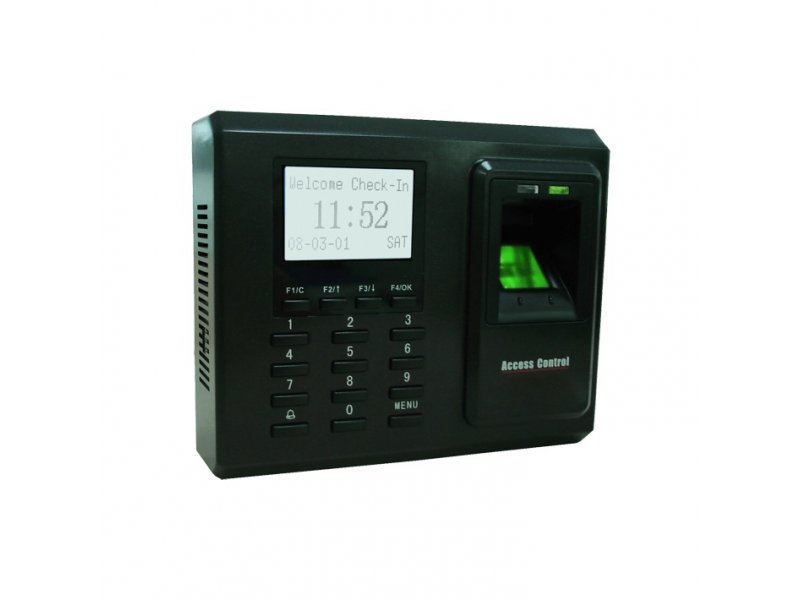

ZKTECO F702-S
Just on touch! That's all it takes for accessing control to ZKTeco's F702-S biometric reader. It offers the flexibility to be installed standalone or with any third party panels that support 26-bit Wiegand. Fast, reliable performance and the affordability strengthen ZK reader's competitive edge. Each reader has the capacity to store up to 2,200 fingerprint templates and 50,000 transactions. Enrolling users is fast and easy, Since most of our readers have a user-friendly keypad and display, enrolling users is fast and easy. All our readers are easily accessed. Together with a TCP/IP or a serial port, the readers can update and synchronize automatically.
• Equipped with durable and recognizable ZK optical sensor.
• 1-touch 1-second employee recognition.
• Store up to 2200 templates and 5000 transactions.
• Enter PINs is not necessary.
• Support 50 time zones, 5 groups and 10 unlock combinations.
• Tamper-proofed switch and alarm output.
• Request-to-exit and alarm contacts.
• Standalone operation without a computer.
• TCP/IP, Serial and Wiegand Interfaces.
• Export real time 1-touch data to 3rd party hosted or non-hosted applications.
• Indicate audio-visual signals for acceptance or rejection due to valid or invalid fingerprints.
• SDK available for OEM customers and software developers.
Technical Specifications | |
| Fingerprint Capacity | 2,200 templates |
| Transaction Capacity | 50,000 |
| Hardware Platform | ZEM565 |
| Sensor | ZK Optical Sensor |
| Algorithm Version | ZKFinger V10.0 |
| Communication | RS232/485, TCP/IP, USB-host |
| Access Control Interface for | 3rd party electric lock, door sensor, exit button, alarm, DoorBell |
| Standard Functions | SMS, DLST, Webserver, Workcode, Anti-passback |
| Optional Functions | ID, Mifare, HID, 9 digit user ID, Automatic Status Switch, Soap, printer |
| Wiegand Signal | Input & Output |
| Display | B & W LCD Screen |
| Power Supply | 12V DC |
| Operating Temperature | 0°C - 45°C |
| Operating Humidity | 20% - 80% |
| Dimension(W×H×D)mm | 140.5×116×43.5 |
| Gross Weight | 0.85kg |
