BioLite Solo is powered by Suprema’s renowned fingerprint algorithm that has been
recognized multiple times by both FVC and NIST MINEX as the best algorithm in the
world. The device delivers fast matching speed and rapid responses while providing
an exceptional low error rate.
The powerful DSP of the device is capable of handling large amounts of data required for
fast and accurate verification while ensuring uninterrupted device operations.
FVC: International competition focused on fingerprint verification software
assessmentMINEX TEST: Minutiae Interoperability Exchange Test by US Government’s NIST† FVC 2004, 2006, 2010 / NIST MINEX 2008

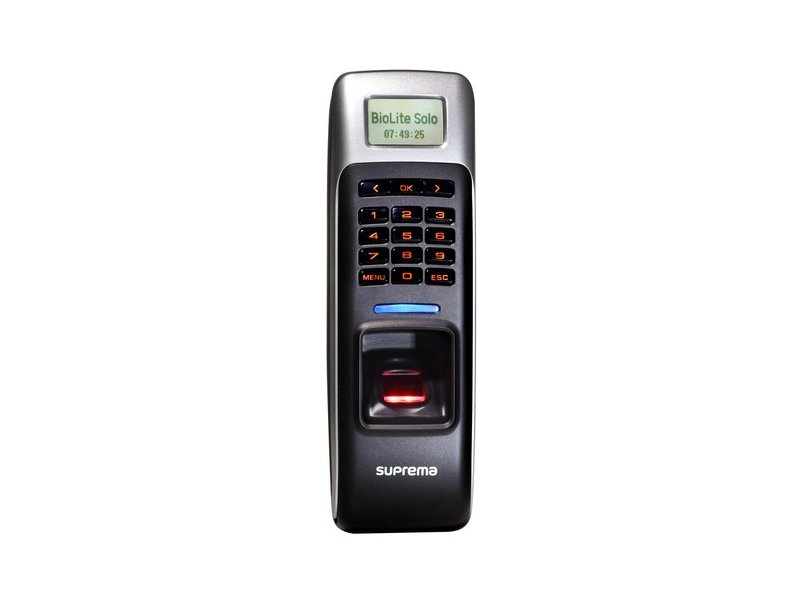

BioLite Solo is a stand-alone biometric access control terminal designed for small
business that doesn't require a complicated access control system. With aid of user
friendly interface through Graphic LCD, enrolling and managing users are a breeze.
Sophistication of highly secure biometric system, BioLite Solo servers as a next gener-
ation in small scale access control.
No compatibility with BioStar or BioStar2
ROK ISPORUKE 10-15 RADNIH DANA Specification
| Main | Biometric | Fingerprint |

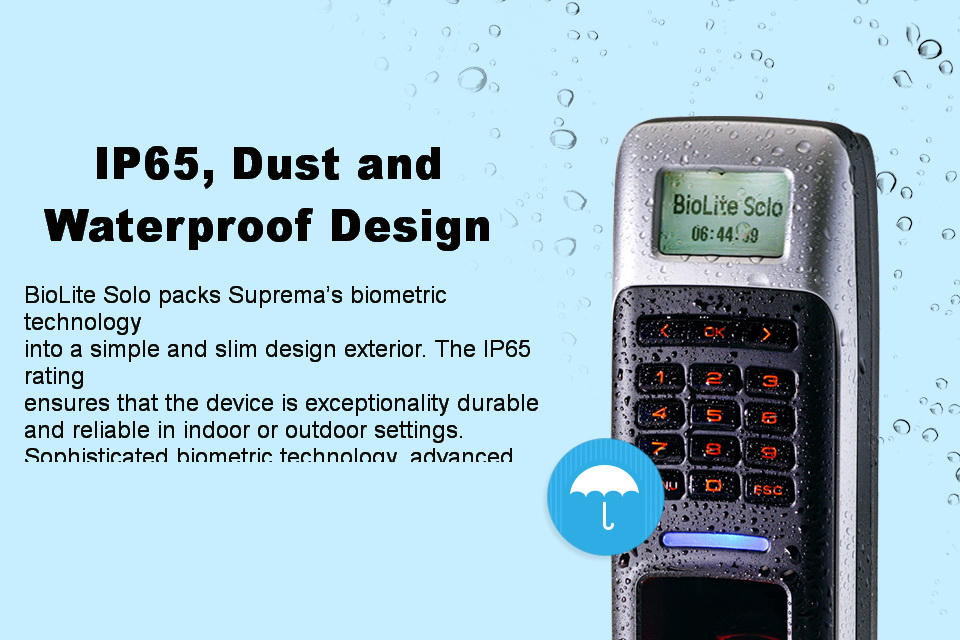

| IP Rating | IP65 |
| RF Option | - |
| Multi-Controller | Yes |
| Capacity | Max. User (1:1) | 200 |
| Max. User (1:N) | 200 |
| Max. Template (1:1) | 800 |
| Max. Template (1:N) | 800 |
| Max. Text Log | 5,000 |
| Max. Image Log | - |
| Interface | WiFi | - |
| TCP/IP | - |
| RS-485 | To Slave Only |
| RS-232 | - |
| Wiegand | - |
| Input | 2 Inputs |
| Relay | 1 Relay |
| USB | - |
| SD Card Slot | - |
| Hardware | CPU | 533MHz DSP |
| Memory | 8MB RAM + 8MB Flash |
| LCD | 128x64 Graphic LCD
(Monochrome) |
| LED Indicator | Multi-Color |
| Sound | Multi-tone Buzzer |
| Operating Temp. | -20° to 50°C |
| Tamper | Yes |
| Power | 12VDC |
| PoE | - |
| Dimensions | 60 x 185 x 40 (WxHxD mm) |
| Certificates | CE, FCC, KC, RoHS |
| Compatibility | BioStar 1.x | - |
| BioStar 2 | - |
Accessories
Secure I/O
Power Adapter
Applications
Access control for small offices, shops, garage and residential houses
