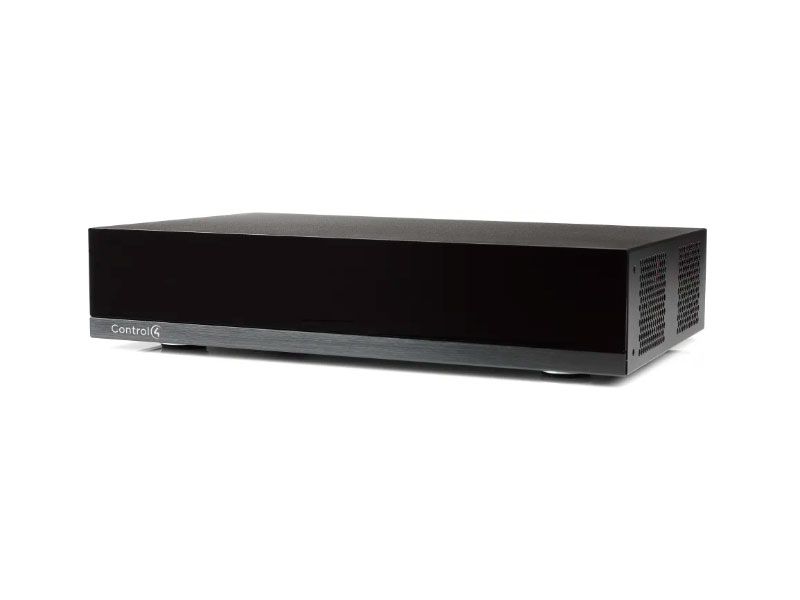

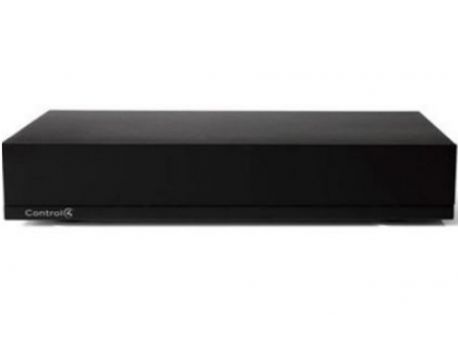

CONTROL4 C4-LU862

The 4K Ultra HD range of HDCP 2.2-compliant matrix switches delivers world-class distribution of your source material to every room in a residential or commercial installation. The C4-LU862 represents the finest technology in a convenient form factor. This model is capable of distributing eight HDMI 4K Ultra HD sources to eight zones – six utilizing HDBase T Class A Technology and two additional zones vial local HDMI outputs. The integrated audio matrix can route audio extracted from the 8 HDMI sources and eight independent coaxial digital inputs to any of the HDBaseT or HDMI outputs and 8 analog audio outputs with variable volume, bass and treble controls as well as audio delay for lip sync correction. Featuring an integrated Ethernet switch, the LAN port on the C4-LU862 provides an Ethernet connection to six C4-LU1E HDBaseT Receivers. Fast switching times are achieved thanks to the Control4 advanced EDID management system and EZ-Calibration. Zone Lock technology ensures home theater and media rooms are able to take full advantage of the latest 4K and 3D content.

• 4K Ultra HD compatible
• HDCP 2.2 compliant
• HDBaseT 5 Play support allowing video, surround sound audio and IR and serial control distribution up to 100 meters over a single category cable
• Ultra-compact HDBaseT receivers are powered from the switch, providing for a simple, clean installation
• SDDP allows the for easy identification and fast installation. No need to mess with static IP addresses or reservations
• Built-in audio matrix switch features 8 digital (coax) audio inputs (perfect for pairing with digital audio outputs on Control4 EA controllers) that can be routed to any HDMI*, HDBaseT*, or one of 8 analog audio outputs
