2N 2N IP Phone D7A 02660-001

Brend: 2N
Kod proizvoda: 2N 2N IP Phone D7A 02660-001
Dostupnost: Na lageru

Pozvati za cenu

Order number: 02660-001

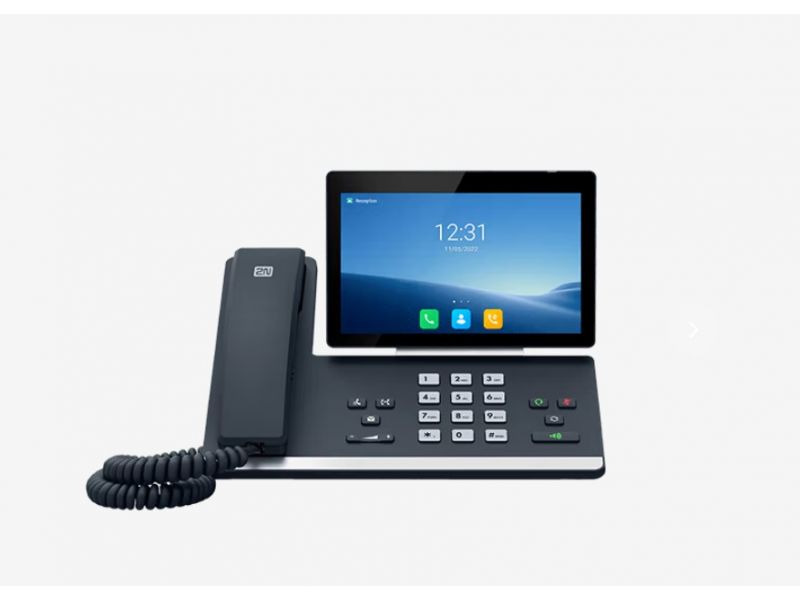

Any modern building, residential or commercial, needs a smart IP phone that allows the receptionist to answer calls from the IP intercom at their front entrance. Preview the person waiting via the IP intercoms camera on the built in 7’’ touchscreen display, and open the door at the mere touch of a button. What's more, it’s equipped with Android OS, which allows apps such as Skype or Zoom to be installed on the phone for video calling whenever needed.
The 2N IP Phone D7A is not covered by free cloud calling within My2N.

You only need one UTP cable for communication and power supply. If that doesn't work for you, you can connect the phone to the network via Wi-Fi. Setting up calls is easy, too - you can do it within 3 minutes. Simply use our quick guide, datasheet or a complete user manual to help you.

Order optional accessories and enhance the potential of the 2N IP Phone D7A.

-USB camera for the 2N IP Phone D7A (Order No. 1120105) - simply connect the camera and add a two-way video function, for example with the 2N IP Style intercom.
-Extender module for the 2N IP Phone D7A (Order No. 91378363) - add up to 60 speed dials to the phone.
-Wall mount bracket for the 2N IP Phone D7A (Order No. 91378364) - a simple accessory that allows you to place the phone on the wall.

Technical specifications

Audio Features
Audio Codec: Opus, G.722, G.711A, G.711U, G.729, G.726, G.723.1, iLBC
Dtmf: In-band, out-of-band (RFC 2833) and SIP INFO

Video Features
Video Codec: H.264 High Profile, H.264, VP8
Video Quality: 720P(1280x720)-30fps (equal or more than 512 kbps)
Field Of View (FOV): 75° ±5°

Optional CAM50 Camera
Resolution: 5 mega-pixels
Privacy Shutter: yes
Vertical Tilt Angle Adjustable: 3°

Display And Indicator
Screen Type:LCD
Resolution:7” 1024 x 600 capacitive adjustable touch screen
Vertical Tilt Angle Adjustable:48°
Led:for call and message waiting indication

Phone Features

Number Of SIP Accounts:16
Call Features:call hold, call forward, call waiting, call transfer, one-touch speed dial, hotline, mute, DND, group listening, emergency call, redial, call return, auto answer, dial plan, action URL/URI, RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035), voice mail, call park, call pickup
Intercom Features: preview, one-button open, monitoring
Other Features:music on hold, call recording, directory, local phonebook up to 1000 entries, XML/LDAP remote phonebook, call history

Feature Keys

Number Of Keys: 27 one-touch DSS keys
7 Feature Keys: hold, transfer, message, headset, mute, redial, speakerphone
Other Keys: volume control, mute, headset, hands-free speakerphone key

Interface

PoE: Power over Ethernet (IEEE 802.3af), class 3
Bluetooth: 4.2 for optional Bluetooth Handset BTH58, generic Bluetooth headset and paired mobile devices
USB Ports: 2 one USB 2.0 port on the top of the phone for the optional CAM50 camera, one USB 2.0 port on the rear of the phone for USB flash drive or USB headset
Rj9 (4P4c):2 one RJ9 handset port, one RJ9 headset port
Extender Support:supports up to 3 colour-screen extender EXP50 modules (Order No. 91378363)

Management

Configuration: web browser/local phone UI/auto provision
Auto Provision: via FTP/TFTP/HTTP/HTTPS

Network And Security

Ethernet: dual-port Gigabit
Wi-Fi: IEEE802.11a/b/g/n, 2.4GHz/5.0GHz
Internet Protocol Version: IPv4/IPv6
Signalling Protocol: SIP v1 (RFC2543), v2 (RFC3261)
Call Possibilities: proxy mode and peer-to-peer SIP link mode
QoS: 802.1p/Q tagging (VLAN), SRTP
Encryption: TLS1.3
VPN: OpenVPN, IEEE802.1X, L2TP VPN

Other Technical Parameters

External AC adapter: optional(DC 5V/2A output)
Power consumption: 2.5W~7.6W
Dimensions (WxDxH): 259.4 x 220 x 215mm
Package content: 2N IP Phone D7A,wired handset with cord, ethernet cable, desk stand, quick start guide
Wall mountable: optional
