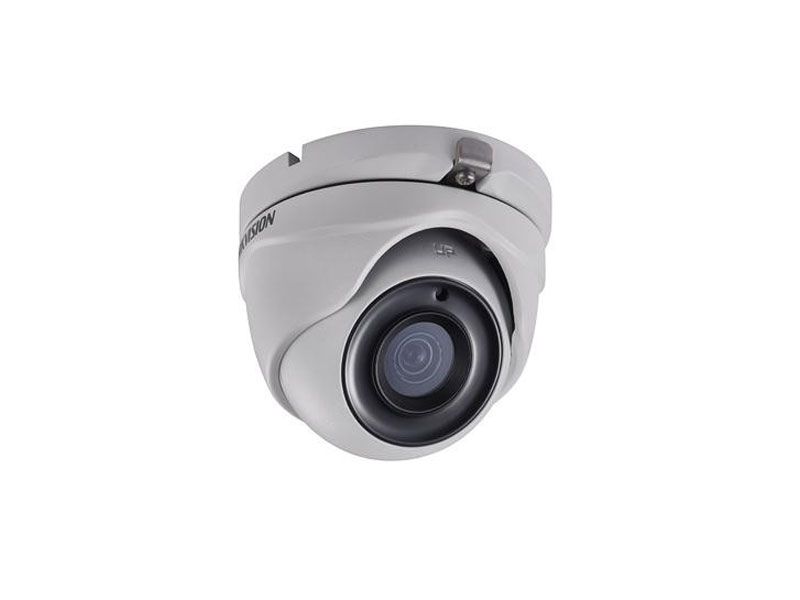

HIKVISION DS-2CE56D8T-ITME
PoC HD-TVI turret kamera, Rezolucija 2 Mpix (FULL HD 1080p@25 fps); 1/2.7'' Progressive Scan CMOS senzor; Mehanički IR filter (ICR); Osetljivost 0.005 Lux (0 IR on); Fiksni objektiv 2.8 mm; EXIR tehnologija rasvete sa dometom do 20 m (Smart IR); 120dB WDR; BLC; HLC; 3D DNR; ATW; Za unutrašnju/ spoljašnju montažu (IP67), Radna temperatura -40°C~60°C; Napajanje 12Vdc/PoC.af/3.6W
| Camera | ||
|---|---|---|
| Image Sensor: | 2MP CMOS Image Sensor | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 1920(H)*1080(V) | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° | |
| Day& Night: | IR cut filter | |
| Video Frame Rate: | 1080p@25fps/1080p@30fps | |
| HD Video Output: | 1 Analog HD output | |
| Synchronization: | Internal Synchronization | |
| Up the Coax: | Support | |
| Menu | ||
|---|---|---|
| Auto White Balance: | Auto/MWB | |
| BLC: | Support | |
| AGC: | Support | |
| Language: | English | |
| General | ||
|---|---|---|
| Operating Conditions: | -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) | |
| Power Supply: | 12 VDC±25%/PoC.af | |
| Weather Proof: | IP67 | |
| IR Range: | Up to 30m | |
| Communication : | Up the coax Protocol: HIKVISION-C(Coaxitron) | |
| Dimension: | 89.47 mm × 68.2 mm (3.52" × 2.68") | |
| Weight: | Approx. 250 g (0.55 lb.) | |
-
Datasheet_of_DS-2CE56D8T-ITME
