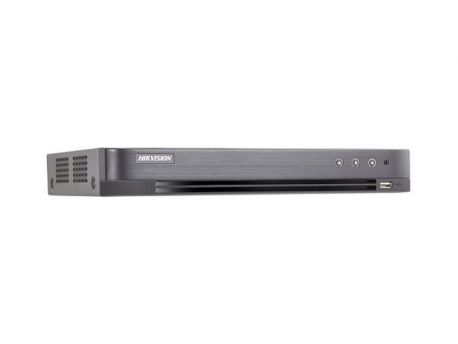

HIKVISION DS-7216HQHI-K2P

Brend: HIKVISION
Kod proizvoda: HIKVISION DS-7216HQHI-K2P
Dostupnost: Na lageru

Pozvati za cenu

NOVI 16-kanalni hibridni PoC HD-TVI/AHD/HD-CVI digitalni snimač; Podržava 16 HD-TVI (3 MP za kanale 1-4/ 1080p ili 720p ostali kanali) ili AHD/HD-CVI (1080p/720p) ili analogne kamere (slobodan izbor) + 2 Hikvision IP kamera (4MP); Kompresija H.265+/ H.265/ H.264+/ H.264; Brzina zapisa (po kanalu): 15fps@3Mpix/ 15fps@1080p/ 25fps@720p; Dual stream; Prostor za 2 SATA HDD (do 6ТВ); audio ulaz/izlaz; 3 USB porta; RS-485; 1000Mbit LAN; HDMI rezolucije 4K/ VGA i analogni BNC video izlazi; Grafički meni; CMS software; Klijent za mobilne telefone iVMS-4500/ Hik-Connect (iOS/ Android/ WinMobile); USB miš, bez HDD

Video/Audio Input
Audio Input:		1-ch
Video Compression:		H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog Video Input:		16-ch
Supported camera types:		Support HDTVI input: 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 Note: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1/P, channel 1/2 of DS-7208HQHI-K2/P, and channel 1/2/3/4 of DS-7216HQHI-K2/P.. Support AHD input: 4 MP, 1080p25, 1080p30, 720p25, 720p30 Support CVI input: 1080p25, 1080p30, 720p25, 720p30 Support CVBS input Supports Hikvision PoC camera *: PoC access capability see Appendix.
IP Video Input:		up to 24-ch
Video Input Interface:		BNC (1.0 Vp-p, 75Ω)
IP Video Input Resolution:		Up to 6 MP resolution
Two-way Audio:		1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st channel of audio input)

Network management
Remote connections:		128
Network protocols:		TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF

Hard Disk Driver
Interface Type:		2 SATA Interfaces
Capacity:		Up to 10 TB capacity for each disk

General
Consumption:		≤ 120 W
Working Temperature:		-10 oC to +55 oC (+14 oF to +131 oF)
Working Humidity:		10% to 90%
Dimensions:		380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
Weight:		≤ 2 kg (4.4 lb)

Video/Audio Output
Video output:		1-ch, BNC(1.0Vp-p, 75Ω)
HDMI/VGA Output:		VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Recording resolution:		When 1080p Lite mode not enabled: 4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF
Frame Rate:		Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p @15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Synchronous Playback:		16-ch
