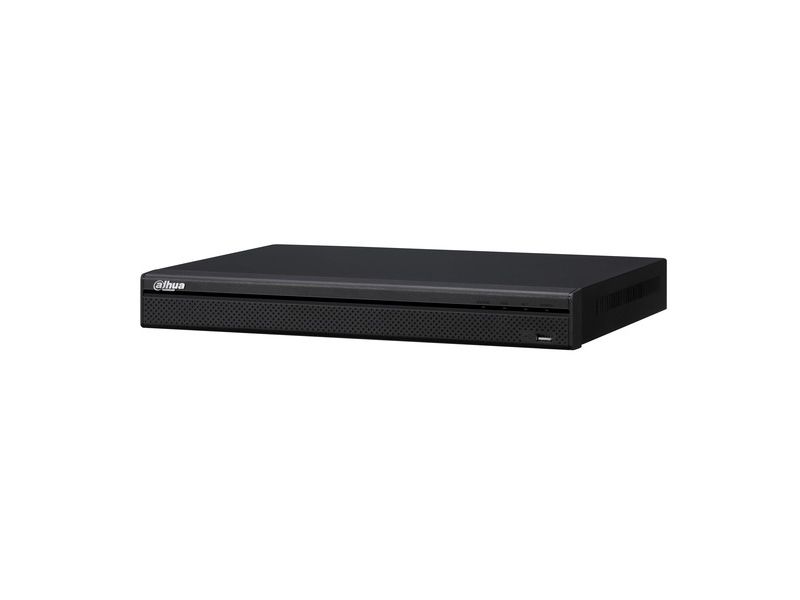

DAHUA HCVR5216AN-NT

Model HCVR5204AN-NT HCVR5208AN-NT HCVR5216AN-NT System Main Processor Embedded processor Operating System Embedded LINUX Video Input 4 channel, BNC 8 channel, BNC 16 channel, BNC Standard Analog NTSC/PAL HDCVI 1080P/720P HDCVI ,AHD Camera IP 4+2 up to 5Mp 8+4 up to 5Mp 16+8 up to 5Mp Audio Input 1 channel, RCA Output 1 channel, RCA Two-way Talk Reuse audio input/output channel 1 Display Interface 1 HDMI, 1 VGA Resolution 1920×1080, 1280×1024, 1280×720, 1024×768 Display Split 1/4/6 1/4/8/9 1/4/8/9/16 Privacy Masking 4 rectangular zones (each camera) OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording Recording Video/Audio Compression H.264/G.711 Resolution 1080P(1920×1080)/1080N(960×1080)/720P(1280×720)/960H(960×576/960 ×480)/D1(704×576/704×480)/HD1(352×576/352×480) /BCIF(704×288/704×240) CIF(352×288/352×240) / QCIF(176×144/176×120) Record Rate Main Stream: 1080P(1~15fps) 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps) Extra Stream D1/CIF/QCIF(1~15fps) Bit Rate 1~6144Kb/s Record Mode Manual, Schedule(Regular(Continuous), MD), Stop Record Interval 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec Video Detection Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank Intelligent Video (Optional) Tripwire, Intrusion, Abandoned/Missing, Face Detection Playback & Backup Sync Playback 1/4 1/4/9 1/4/9/16 Search Mode Time/Date, MD & Exact search (accurate to second) Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next HCVR5204/5208/5216AN-NT camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom Backup Mode USB Device/Internal SATA burner/Network Network Ethernet RJ-45 port (10/100M) RJ-45 port (10/100M/1000M) Network Functions HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P Max. User Access 128 users Smart Phone iPhone, iPad, Android, Windows Phone Storage Internal HDD 2 SATA ports, up to 12TB Auxiliary Interface USB Interface 2 ports(1 Rear), USB2.0 2 ports (1 Rear USB3.0, 1 Front USB2.0) RS485 1 port, For PTZ control General Power Supply DC12V/4A Power Consumption 15W(without HDD) Working Environment -10°C ~+55°C / 10%~90%RH / 86~106kpa Dimension(W×D×H ) 1U, 375mm×285mm×55mm Weight 2.35KG(without HDD)
