ZKTECO FBL1200 Series(New)

Brend: ZKTECO
Kod proizvoda: ZKTECO FBL1200 Series(New)
Dostupnost: Na lageru

Pozvati za cenu

• High quality electrical components

 • Barriers retract automatically during emergencies

 • LCD on the flap barrier control board, easy operation.

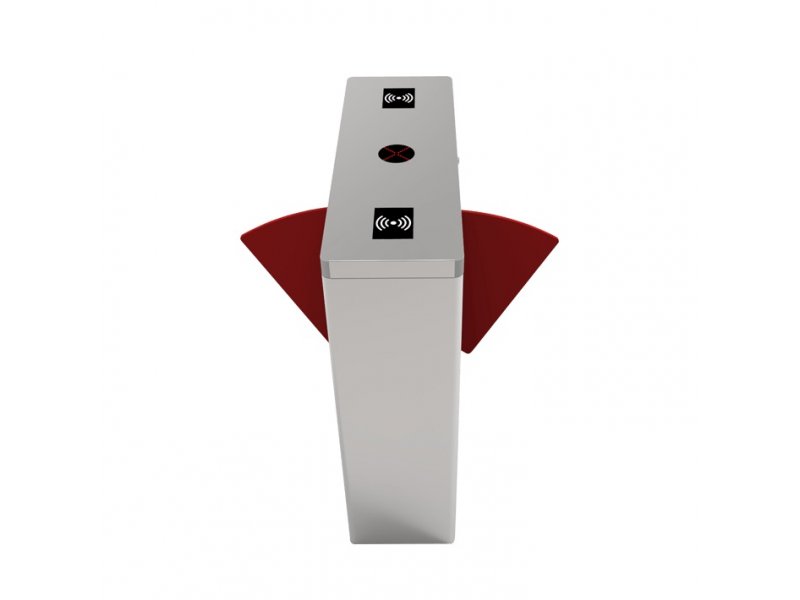

The ZKTeco FBL1200 dual lane flap barrier turnstile is an elegant cost-effective entrance control system designed for high-traffic volume. The FBL1200 series should work together with FBL1000 series to build multiple lanes.

The FBL1200 is a Flap Barrier Turnstile for additional Lane series designed for smooth and silent operation and draws very little power. It’s made of stainless steel which makes FBL1200 highly durable.

FBL1200 barriers are normally held in a locked position, thus denying access to the secured side. Upon FBL1200’s reader (RFID and/or fingerprint) positively recognizing a user’s valid access card or fingerprint, its barriers retract upward automatically, thus allowing users passage to the secured side.

During emergencies the barriers automatically retract upward, thereby ensuring users FAST unencumbered exit to safety. A battery for power outage safety can be installed for retracting the barrier automatically.



FBL1200 provides both security and convenient space, all in a very durable and elegant compact design.

• SUS304 stainless steel casework ensure long-lasting durability

 • High quality electrical

 • Barriers retract automatically during emergencies

 • Barriers retract automatically during power outage with battery installed

 • All smooth finish. No exposed screws

 • Ergonomic design makes card and fingerprint authentication fast & simple for users

 • FBL1200 series ships already integrated with our customers’ preference for either card or fingerprint

   access control reader. This greatly reduces installation time & expense



 • FBL1200 series and associated access control readers are all factory-tested prior to shipping

 • ZKTeco provides true plug&play turnstiles with the lowest possible total cost of ownership in the

   industry



 • LCD on the flap barrier control board, easy operation

Proizvod se poručuje rok isporuke je 60 dana

Technical Specifications

Power requirements

AC 100 ~ 120V/200 ~ 240V, 50/60Hz

Working temperature

-28℃~60℃

Working humidity

5%~80%

Working environment

Indoor/outdoor (if sheltered)



RFID

Maximum 42/ minute

Speed of throughput

Fingerprint

Maximum 35/ minute



Face

Maximum 11/ minute



Vein

Maximum 23/ minute

Lane width(mm)

600

Footprint(mm*mm)

840*870

Dimensions(mm)

L=870,W=300,H=1000

Dimension with packing(mm)

L=1000,W=430,H=1110

Net weight(kg)

58

Weight with packing(kg)

81

LED indicator

Y

Cabinet material

SUS304 Stainless Steel

Lid material

SUS304 Stainless Steel

Barrier material

Acrylicl

Barrier movement

Retracting

Emergency mode

Y

Security level

Medium

MCBF

2 million





0.53MBData Sheet
