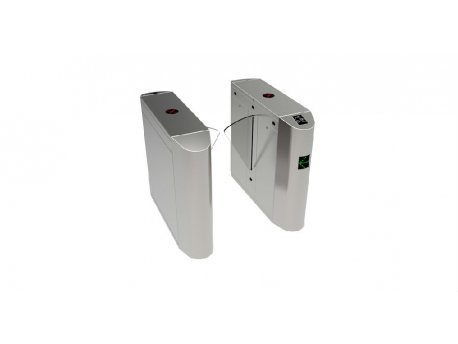

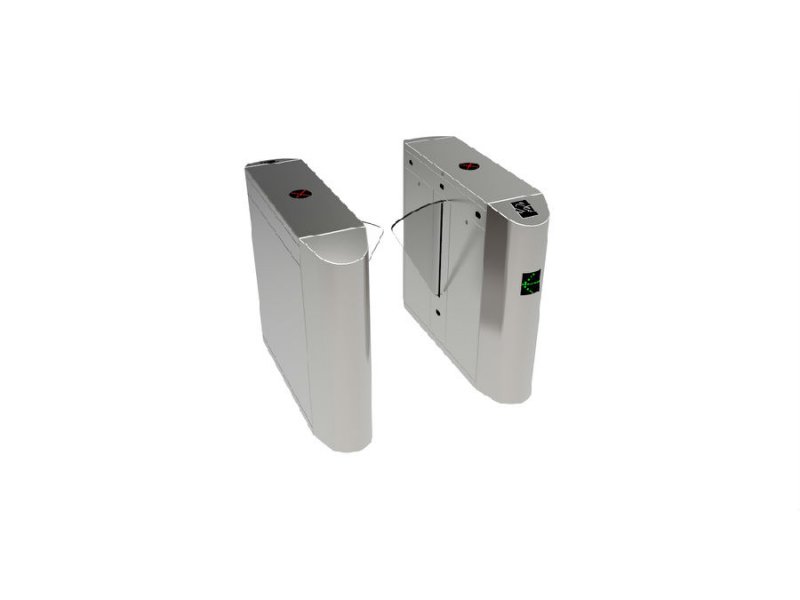

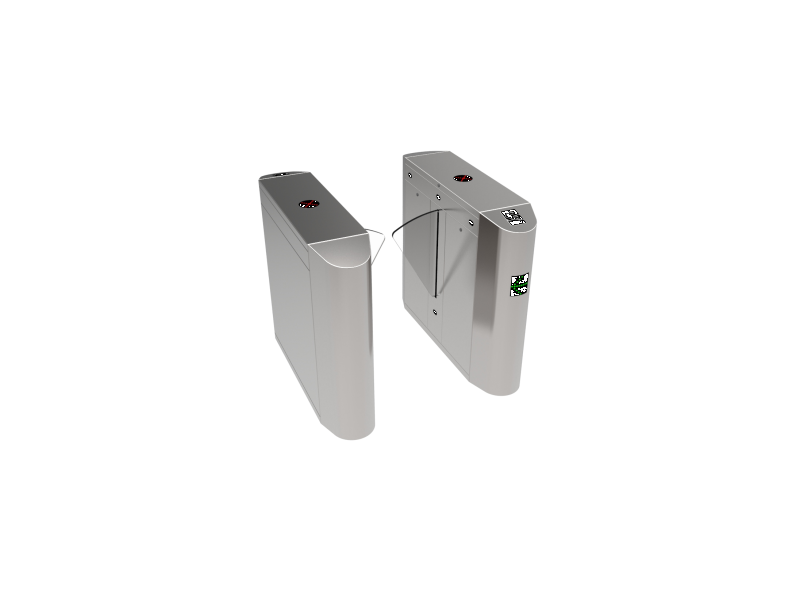

Ozak Optical Turnstiles Y205
Optical Turnstile Product Description The GS Optical Turnstiles also so called GSPR (General Systems Pedestrian Retractable) is designed to control pedestrian entering or exiting restricted areas, personal surveillance is recommended as the barrier can be breached. The ultra quiet retractable...
The GS Optical Turnstiles also so called GSPR (General Systems Pedestrian Retractable) is designed to control pedestrian entering or exiting restricted areas, personal surveillance is recommended as the barrier can be breached. The ultra quiet retractable barriers allow for rapid pedestrian movement through the lane while the advanced optical sensors prevent “tailgating” and crawling by those without proper credentials.
The standard model has an aisle (lane) width of 520mm and the maximum of the lane can be 600mm. The construction consists of sheet metal housings that can be extended with intermediate parts to a user-defined line configuration corresponding to the needs, e.g. in case of a high throughput.
The aisle is blocked by means of a retractable triangular wing made of an acrylic glass wing. After an opening pulse the wing retracts into the housing, consequently the aisle is completely clear. It does immediately after passage or after an adjustable time-out.
The opening and closing times of the wings are from 0.8-1.5 seconds, depends on the user’s requirements.
- Proizvod se poručuje rok isporuke je 15 - 45 dana
Technical Data
Dimension 1200x 280x980mm
Unlock time 0.2s
Passage width ≤ 550mm
Throughput rate 35p/m
Power supply 100~240v
Operational voltage 24v
Max power consumption 35w
Frequency 50~60hz
Prectection level IP55
Working temperature -25~70 °C
Electro-magnetic drive DC
Net weight 46kg
Input 12v dry contact
ayout Drawing
Optical Turnstile Access Control System Diagram
Optical Turnstile & Access Control System Integration
Main Function
Use IC cards,ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function
A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage
Display has been in use for statistics and numbers
With voice and strobe light alerts
A combination of infrared sensors and police antiillegal entry into pedestrian access, the protection of pedestrians smooth and the prevention of the channel following
Double anti-clipping function,photocell anticlipping and mechanical anti-clipping
Auto re-set function, if no passing during identified card-reading time,the system will reset automatically the passengers are prohibited to pass until their second identified reading
The barrier can be set to delay closing in 1-60s after a valid card-reading
Control
Passage in both directions electronically controlled. The pedestrian retractable barrier is available in Normally Open (N/O) or normally Closed (N/C) mode. In N/O the speed gate provides an always open walkway in rest position and will only close at unauthorized entry or tailgating attempts.
Optical Turnstile Method of Operation
ON receiving a signal from the access control system, or push button, the wings open. If an unauthorized person tries to tailgate or attempts to enter from the opposite direction, the system detects the unauthorized passage and activates the in-built alarm system.
Status Lights
90mm dia. LED display status lights flush mounted within the speed gates lid top face. Upon authorization a Green arrow will illuminate in the direction of passage authorization whilst in the opposite direction a Red Cross symbol will illuminate to indicate the unit is not available for use or is already in use.
Power Failure:
In the event of a power failure the wings will automatically open for exit freely.
Fire Alarm
Input facility is available for voltage free contact supplied by others to effect fail state.
Interface
Potential free contact provided by either card reader or pushbutton input. Card reader inhibit and reset outputs signals are available as standard.
Optical Turnstile Users Include
Government Retail/Finance/Telecommunications/Information Technology /Banking /Publishing/Leisure/Petrochemical/Education etc.
