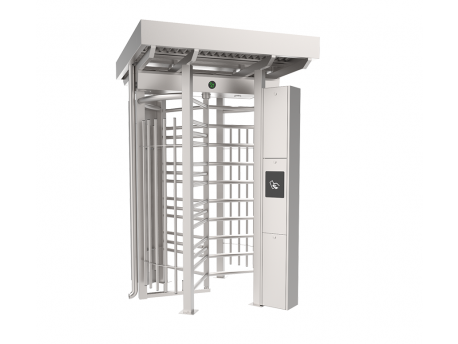

OZAK BT ROOF 300

 The turnstile is completely covered with a roof and is offered with different material features.

Technical Features

Place of Use Indoors, outdoors

Operating Temperature,

Humidity -20°C/+68°C (opt. -50°C with heater positive), RH 95% non-condensing.

Operating Intensity 100%, 7/24 use.

Built on main carriers and supported with pipe beams on sides, consisting of waterproof and protected top lid with damper for safety. Can

be completely disassembled.

Three-section rotor (120°), each having 9 (10 in optional 2120 mm clear passage height) one by one demountable arms.

Complies with UK H&S regulation of ≤98 mm gap between upright profiles.

Combination options with different material choices:

Body / Arm Features

BTX 300 N1 BTX 300 N1-25 BTX 300 N1-100

Body Electrostatic powder coating on hot-dip

galvanized steel

Electrostatic powder coating on

hot-dip galvanized steel

304 grade (opt. 316 grade)

stainless steel

Arms Electrostatic powder coating on hot-dip

galvanized steel, Ø42x2,5 mm.

304 grade (opt. 316 grade)*

stainless steel, Ø40x2,0 mm.

304 grade (opt. 316 grade)*

stainless steel, Ø40x2,0 mm.

(*) Finishing : Satine brushed (opt. electrostatic powder coating on stainless steel).

Indicators / Illumination Status - Direction Indicators : LED, standard/LED passageway illumination standard.

Power Operating Voltage Consumption : 110/220V AC 50/60 Hz. (±10%), 24V DC.

: ~8,1W at stand-by, during passage ~7,6W (varies according to the options and accessories used).

Operating Modes

System operates bi-directionally (entry-exit).

Operating modes can be adjusted through the buttons and screen on the control card.

Entry - exit controlled Entry controlled, exit free Single input both directions use Entry - exit free

Entry free, exit controlled

Operating System Electromechanical manual operation (opt. electromechanical motorized operation).

Control System

All functions, parameters and operating modes can be adjusted through the buttons and screen on the control card.

All inputs are opto-coupler protected.

Controllable by dry contact (ground control).

Compatible with all kinds of access control device.

Optional RS232, RS485 or TCP/IP module is available.

Flow Rate

Passage capacity (manual) : max. 48 cycle/min. Nominal : ~25 pass/min.

Passage capacity (motorized) : max. 40 cycle/min. Nominal : ~20 pass/min.

(nominal passage rate can change depending on the access control system utilized)

Emergency Mode System allows free passage (entry-exit) in both directions (fail safe). Works compatible with fire warning and similar systems. At the end of

an emergency situation, system returns to its normal operating mode.

Power-off Situation System allows free passage (entry-exit) in both directions (fail safe). Optionally, can be set (fail secure) as; entry-exit locked, entry free-exit

locked, or entry locked-exit free. Free passage in chosen direction by manual override key in fail secure option is available.

Weight ~190 kg

Optional Features and

Accessories

Motor driven unit, wireless remote control (receiver-transmitter), manual control, manual override key (with fail secure option), counter

(with/without reset), card reader mounting bracket, passage completion sensor, contactless passage sensor (for motorized models),

heater positive, canopy, bottom plate (standard or for forklift handling), battery back-up, 316 grade stainless steel, RS232-RS485-TCP/IP

modules, limiter, 2120 mm clear passage height, mechanics compartment accessibility from the ceiling, trombone arms, different color
