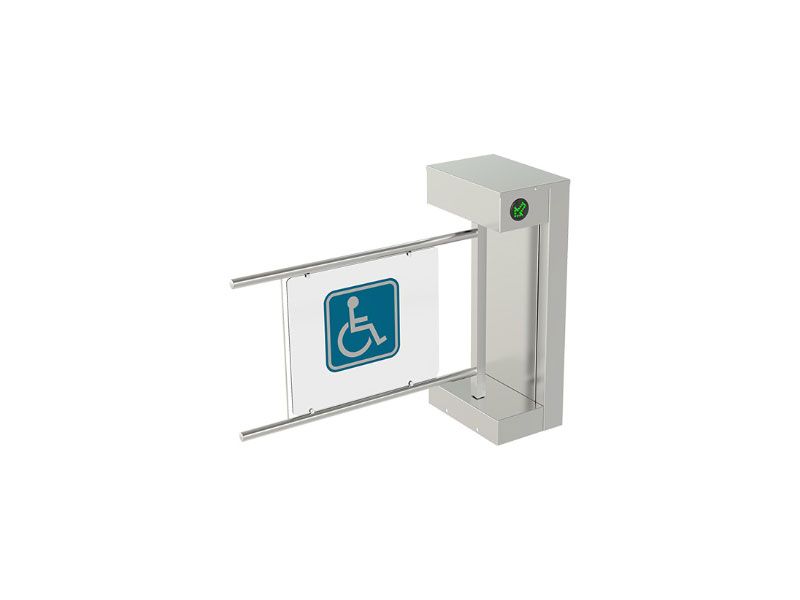

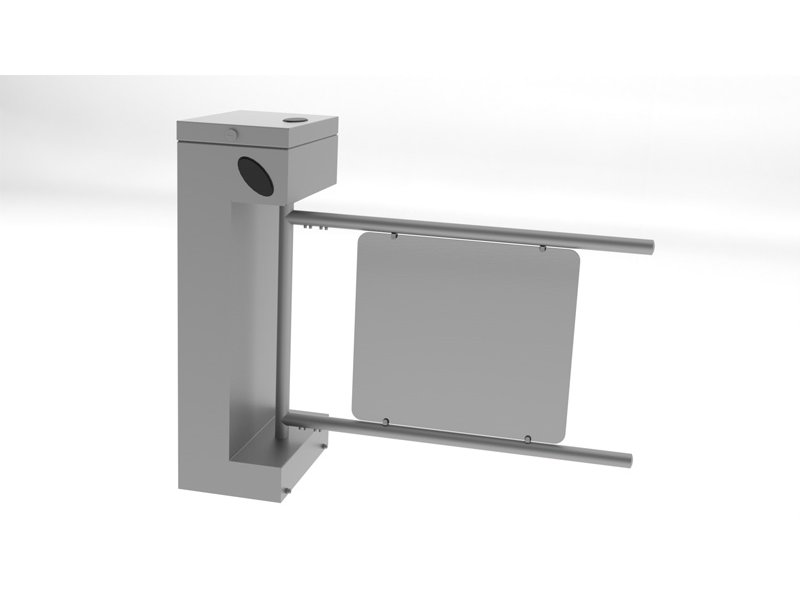

Ozak 705 B
- Entry level wing gate turnstile with a common body shape, suitable for passages of VIP's and passages with wheelchair, trolley, push chair.
- Besides to be used as a stand alone gate, it can be used as a complementary unit along with tripod turnstiles.
| Power Requirements | : | 110/220V. 60/50Hz. AC (%±10) 24V. DC at standby ~11W. max. ~65W. |
| Wing Features | : | Ø40mmx2mm 304-Grade (Opt. 316-Grade) Stainless steel wing frame welded at the connection points equipped with plexi-glass panel. (Opt. anodised hard aluminium wing frame) |
| Body Features | : | 1,5mm 304-Grade (Opt. 316-Grade) Stainless steel protected against water for outdoors use. |
| Operating Temperature, | : | -20°C to +68°C (Opt. -50°C with heater unit) / RH 95% non-condensing / IP 54 Outdoor Model (Opt. IP 56) / 1M Cycle |
| Control System | : | All inputs are opto-coupler protected .Controlled by dry contact or grounding input. Compatible with all access control systems that provide dry contact or grounding outputs. Optional RS232/RS485/TCP IP control module is available. |
| Operation | : | It is a Motorized system that operates bi-directionally. |
| Emergency Mode | : | (Standard: Fail Safe); in case of emergency input the wing opens in either direction (selectable by dip switch). |
| Flow Rate | : | Capacity of Mechanism: ~6-120 passages/minute; Nominal: ~15 passages-per-minute (Recommended reference figure). Utilisation of different access control units can change the flow rate. |
| Standard Features | : | Direction and status indicators on top and sides |
| Optional Accessories | : | Remote control units, interface unit for PC, RS485, RS232 and LAN, counter, audio-messaging system, alarm sensor, heater positive unit, coin slot/intelligent coin system and coin box, card reader pole, pipe barrier (Separator), floor mounting plate, customised top covers to accommodate various accessories. |
-
