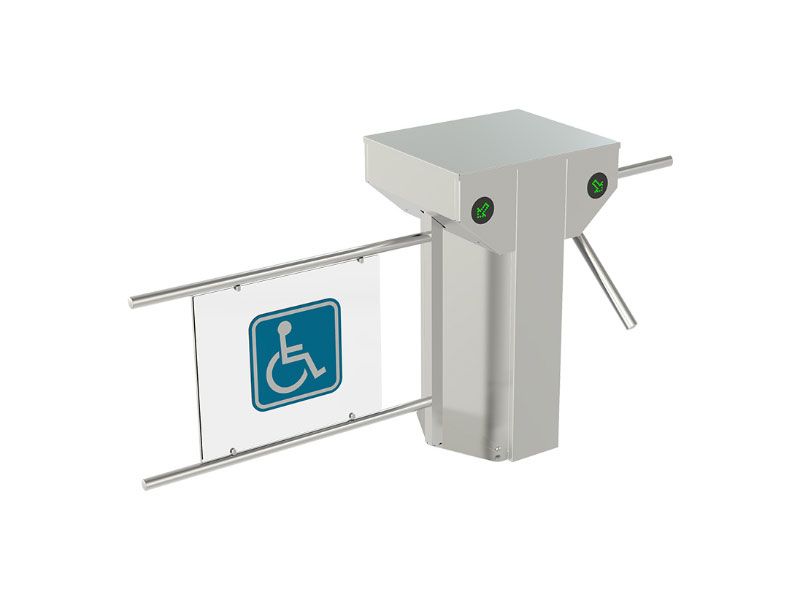

Ozak 505 E
Bez PDV-a: 173,306.25 RSD
- 304 grade stainless steel body
- Hard mat anodised aluminium wing frame
- Plexiglass wing
- Side passing indicators
- Outdoor model
- Cardboard boxes
| PROMOTION PRICE FOR 505 E MODELS | |||
|---|---|---|---|
| 1 PIECE | 2 TO 5 PIECES | 6 TO 11 PIECES | 12 PIECES and MORE |
| 918,75 € | 862,5 € | 808,75 € | 718,75 € |
| Power Requirements | : | 110/220V. 60/50Hz. AC (%±10) 24V. DC at standby ~11W. max. ~65W. |
| Wing Features | : | Available in 450 or 900mm standard lengths. Ø40mmx2mm 304-Grade stainless steel wing frame with plexiglas panel. (Opt. anodised hard aluminium wing frame). |
| Body Features | : | 1,5mm 304-Grade (Opt. 316-Grade) stainless steel with brushed (Opt. Satin) surface. |
| Operating Temperature, | : | 20°C to +68°C (Opt. -50°C with heater unit), RH 95% non-condensing / IP 56 Outdoor Model / 1M Cycles |
| Control System | : | All inputs are opto-coupler protected. Compatible with all access control systems that provide dry contact or grounding outputs. Optional RS232/RS485/TCP IP control module is available. |
| Operation | : | Bi-directional passage, manually (Opt. Motorized) operated system. |
| Emergency Mode | : | System allows free passage in emergency mode and in case of power failure. |
| Flow Rate | : | Capacity of Mechanism (Manuel System): ~90 passages/minute; Nominal: ~25 - 46 passages-per-minute (Recommended reference figure). *Utilisation of different access control units can change the flow rate. |
| Standard Features | : | Direction and status indicators |
| Optional Accessories | : | Remote control units, interface unit for PC, RS485, RS232 and LAN, counter, audio-messaging system, alarm sensor, heater positive unit, coin slot/intelligent coin system and coin box, card reader pole, pipe barrier (Separator), floor mounting plate, customised top covers to accommodate various accessories. |
-
PEDESTRIAN ACCESS
