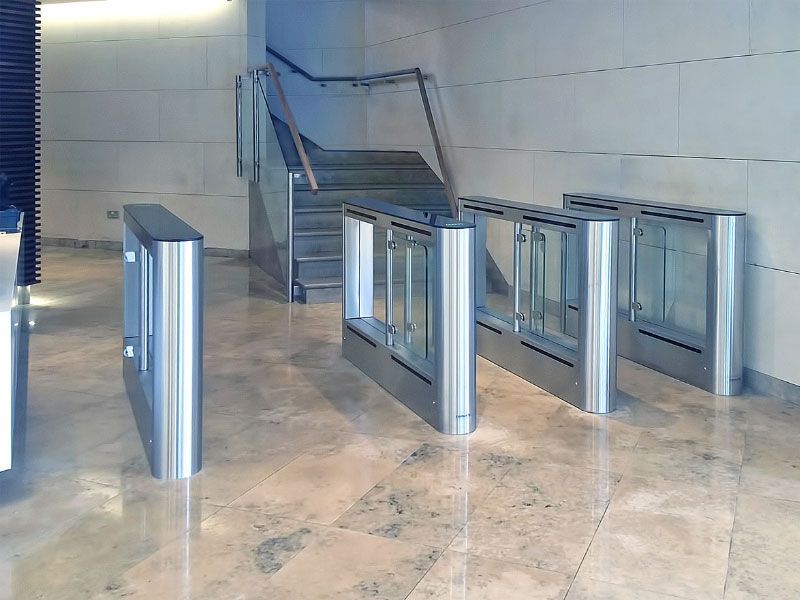

Cominfo EasyGate SPD/G-M-2W
With MDD motor, low maintenance brushless operation, EasyGate SPD is specially designed to withstand considerable abuse found in high throughput public environments that typically wreak havoc on conventional motor drive systems. Available with round or square cabinet design.
EasyGate SPD/G-M-2W
EasyGate SPD/G-M-2W
- Middle cabinet with single barrier for access passage width up to 1100mm
- Sensors (Transmitters Tx) on one side and sensors (Receivers RX) on the other side
- Glass panels - security 10mm glass, transparent, glass height -850mm
- cabinet height - 975mm; length - 1500mm, width - 180mm
- Surface finish - Brushed stainless steel / Top Panel - black glass panel
- MDD drive with external tooth brake
- LaneLight/Access light information panels NOT INCLUDED
- Power supply unit not included (EasyGate/230 power supply unit is obligatory!!)
Cabinet style / Barrier type
- Square or rounded fronts / Mid-height
Available models
- Dual barrier panels
Operating environment
- Indoor / Outdoor covered
Options & accessories
- RFID reader bracket (flush mounted)
- Access Light / Lane Light / Edge Light
- WAV player
- Wing light / Hinge capping / Warning Light
- Pushthrough feature / Pressure sensing top
- USB convertor / Ethernet convertor
- EasyTouch / TouchPanel / T-MON SW
- SuperCap (emergency power back-up)
- Alternative surface fi nishes / Optional top fi nishes
- Integration of LiftCall / Card collector / BarCode scanner
- Side infi ll panel
- Ramp LT
-
