Jablotron JA-63 PROFI JA-63F Bežična tastatura
Brend: Jablotron JA-63 PROFI
Kod proizvoda: Jablotron JA-63 PROFI JA-63F Bežična tastatura
Dostupnost: Na lageru
Kod proizvoda: Jablotron JA-63 PROFI JA-63F Bežična tastatura
Dostupnost: Na lageru
Pozvati za cenu

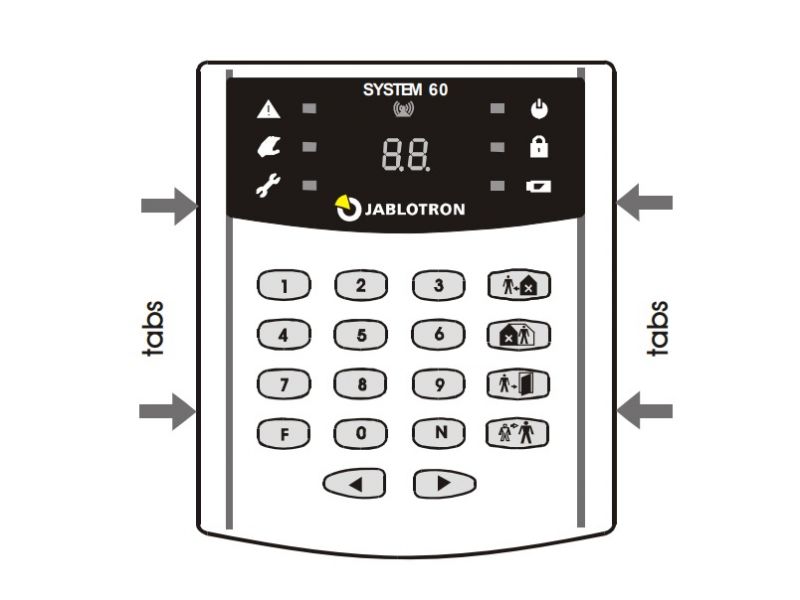

The JA-63F keypad is designed to control and program alarm systems of Jablotron’s JA-60 series. The keypad is equipped with backlit keys, built-in LED signalling, acoustic signalling, and a display. It conveys information about the system status in a convenient way. The keypad communicates wirelessly. The keypad has a single input which is designed for door contact connections. Any undesirable mishandling of the keypad (like opening its housing or tearing the keypad off its position) will trigger tamper signalling. In addition, the number of attempts to enter an access code is checked not to exceed a given limit. The keypad performs regular auto-testing and reports its condition (including loss of communication) regularly to the system for full supervision.
Specifications
Power supply 6 V – 4x AAA alkaline battery cells or 12 V DC / 100 mA power adaptor
Battery life time typically 1 year
Number of keypads in a system max. 8 control devices
Communication band 433.92 MHz
Communication range max. 80 m (open area, no interference)
Access codes identical to control panel (1 +14)
Door detector input IN = Normally closed
Enclosure IP40
Dimensions 125 x 145 x 30 mm
Degree of protection 2 EN 50131-1
Complies with EN 50131-1 grade 2
Environmental class II indoor general, -10 to +40 °C
Can be operated according to ERC REC 70-03
The package contains: JA-63F keypad, 4 dowels&screws,4 cells AAA
