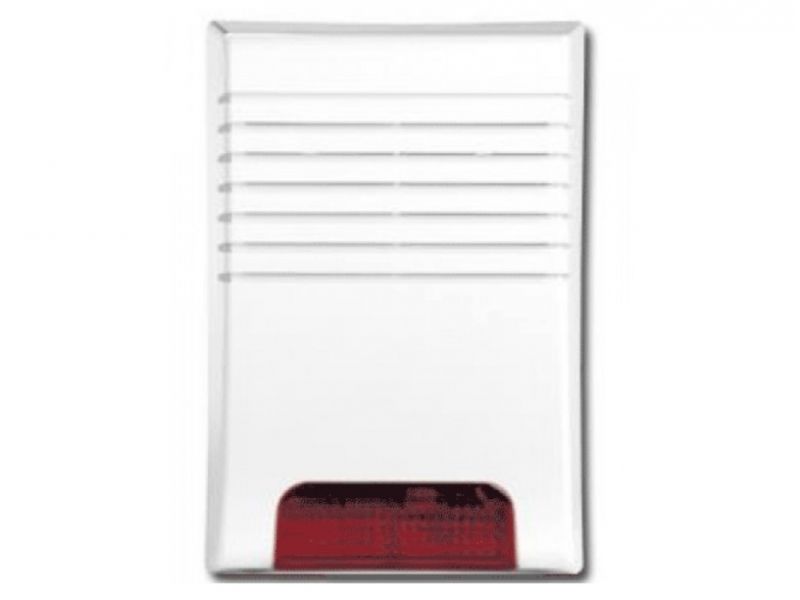

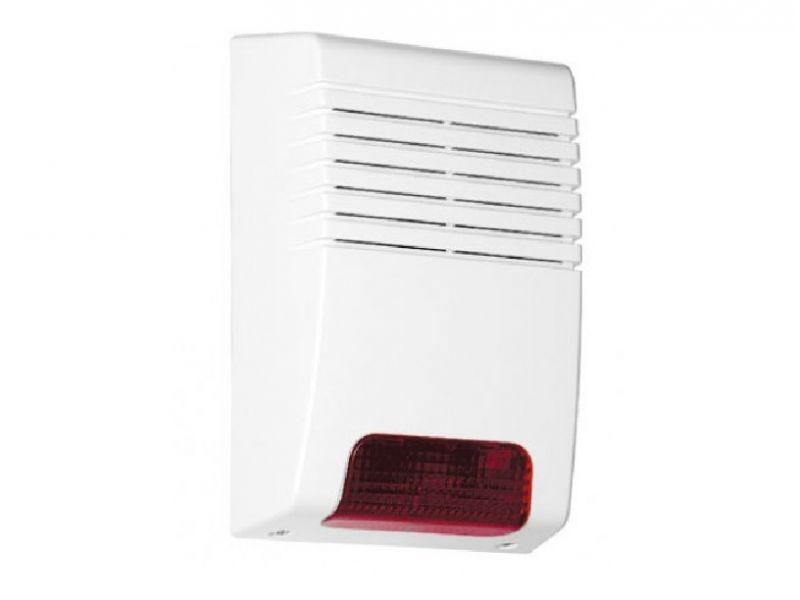

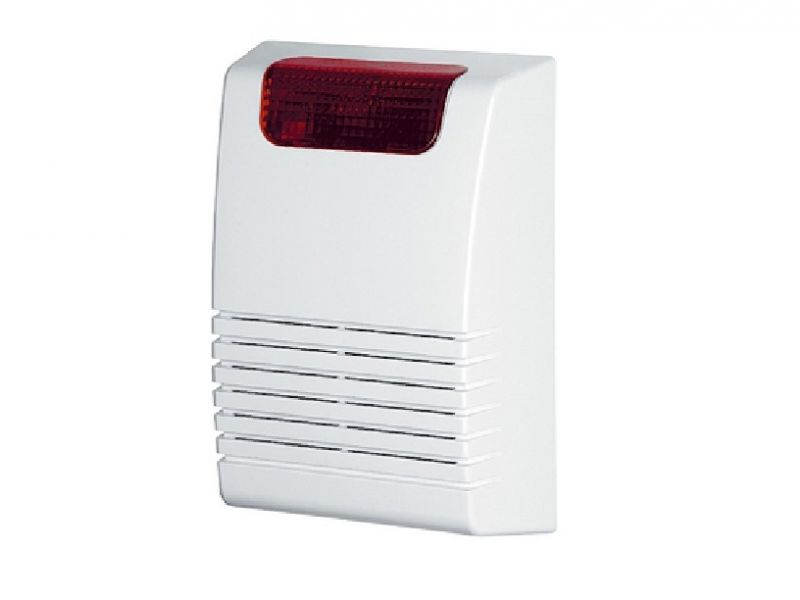

Jablotron JA-63 PROFI OS-365A Spoljna žična sirena
Brend: Jablotron JA-63 PROFI
Kod proizvoda: Jablotron JA-63 PROFI OS-365A Spoljna žična sirena
Dostupnost: Na lageru
Kod proizvoda: Jablotron JA-63 PROFI OS-365A Spoljna žična sirena
Dostupnost: Na lageru
Pozvati za cenu
The OS-360A / OS-365A is an outdoor siren with a rechargeable backup battery. Model OS-360A is equipped with a piezo-electric siren mainly suitable for urban areas with a high building density. If necessary another piezo-electric siren (ACM-OS360) can be used. Model OS-365A is equipped with a compressive magnetodynamic horn siren mainly suitable for family houses or for buildings with more space around them. Two tamper sensors are built into the unit. They react to removing the cover from the unit or tearing the siren off its position. The siren’s housing is made of mechanically, weather and UV-resistant plastic. The circuit board is protected against air humidity by a layer of special varnish. The built-in flashing light can be operated separately.
Power supply 10 to 15 V DC
Standby consumption < 50 mA / 12 V
Maximum load consumption < 800 mA /12 V
Backup battery NiCd pack 4.8 V / 1800 mAh
Lifetime approx. 3 years
Piezoelectric siren (OS-360) sound level 113 dB / 1 m
With second piezo-electric siren (ACM-OS360) 118 dB / 1 m
Electro-acoustic siren (OS-365) sound level 110 dB / 1 m
Siren timer max. 5 minutes
Flasher time alarm duration +15 minutes / 0
Resistance of the tamper loop < 70 Ω
Enclosure IP 34D
Security grade 2 EN 50131-1, CLC/TS 50131-4
Working environment class IV, outdoor general
Operational temperature -25 to +60°C
EMC EN 50130-4, EN 55022
Safety EN 60950-1
Dimensions 230 x 158 x 75 mm
